How Much Drop or Rise Do I Need for a Trailer Hitch?
A trailer hitch can have the right receiver size, the right ball size, and enough towing capacity—and still be the wrong setup if the ball sits at the wrong height.
That is where drop and rise come in.
If your truck sits higher than your trailer, the hitch ball usually needs to move down.
If the trailer coupler sits higher than the receiver, the ball may need to move up.
The goal is simple:
Connect the truck and trailer at a height that allows the trailer to sit as level as practical when towing.
The good news is that figuring out the right drop or rise does not require guessing.
You only need two measurements.
What Does Hitch Drop Mean?
Hitch drop is the amount the hitch ball sits below the receiver opening.
It is commonly needed when the receiver on the tow vehicle is higher than the trailer coupler.
This is especially common with full-size pickups, heavy-duty trucks, lifted trucks, larger tires, or trailers that sit relatively low.
For example, if your truck receiver sits at 23 inches and the trailer coupler sits at 18 inches, the difference is approximately 5 inches.
That means you need roughly 5 inches of drop.
What Does Hitch Rise Mean?
Rise is the opposite.
If the trailer coupler sits higher than the vehicle receiver, the ball mount needs to position the hitch ball above the receiver.
Not every ball mount is designed to be used in both drop and rise positions, so always check the design and instructions for the specific hitch you are using.
The same measurements are used for both drop and rise.

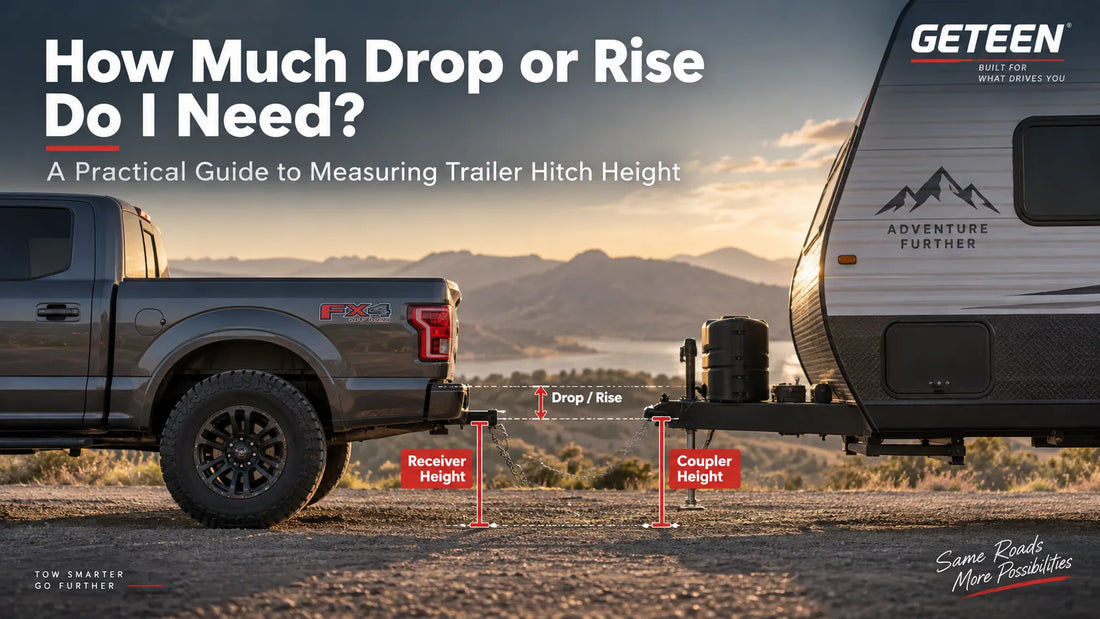

How to Measure Trailer Hitch Drop or Rise
Park both the tow vehicle and trailer on reasonably level ground.
The trailer should be level before measuring. Use the trailer jack to raise or lower the front until the trailer frame is approximately parallel with the ground.
Then take two measurements.
Measure from the ground to the top inside edge of the vehicle's receiver opening.
Next, measure from the ground to the bottom of the trailer coupler.
This is also the measurement method described in CURT's adjustable hitch guidance.
Now compare the two numbers.
Example: You Need Drop
Truck receiver height:
23 inches
Trailer coupler height:
18 inches
Calculation:
23 − 18 = 5 inches
The truck sits 5 inches higher than the trailer coupler, so the setup requires approximately 5 inches of drop.
Example: You Need Rise
Truck receiver height:
17 inches
Trailer coupler height:
20 inches
The trailer coupler sits 3 inches higher than the receiver.
That means you need approximately 3 inches of rise.
The important part is not the formula itself.
It is taking both measurements on level ground with the trailer sitting level.
Why Trailer Height Matters
The objective is not simply to connect the coupler to the ball.
The trailer should also sit at an appropriate towing angle.
A trailer that is noticeably nose-high or nose-low changes how the trailer sits relative to the tow vehicle and axles.
That is why choosing a ball mount only by receiver size or towing capacity is incomplete.
Receiver size tells you whether the hitch fits the truck.
Weight rating tells you whether the component is rated for the load.
Drop or rise determines whether the ball can be positioned at the correct height.
You need all three.
Do I Need a 5-Inch or 7-Inch Drop Hitch?
This is where many buyers start guessing.
A taller truck does not automatically mean you need the longest drop available.
Measure first.
If your truck and trailer combination requires approximately 4 to 5 inches of vertical adjustment, a 5-inch configuration may provide the range you need.
If your receiver sits considerably higher, or you regularly tow trailers with very different coupler heights, a longer adjustable configuration may provide more flexibility.
GETEEN's current steel adjustable hitch range includes both 5-inch and 7-inch configurations, while its aluminum adjustable models currently use a 5-inch drop/rise configuration.
The correct choice is not:
“Which one gives me more drop?”
It is:
“Which one covers the actual height range of the trailers I tow?”
Why an Adjustable Hitch Helps
A fixed ball mount can work perfectly when one truck is always towing the same trailer.
The problem begins when the setup changes.
You may tow a utility trailer during the week and a boat trailer on the weekend.
One coupler may sit several inches higher than the other.
A fixed ball mount that is correct for one trailer may not place the ball at the right height for the next one.
An adjustable hitch lets you move the ball assembly vertically instead of replacing the complete ball mount every time.
This is particularly useful for drivers who use one vehicle with several trailers.
GETEEN currently offers adjustable hitch configurations for both 2-inch and 2.5-inch receivers, including dual-ball and tri-ball designs.
Drop Is Only One Part of Choosing a Hitch
Getting the height right does not mean the rest of the setup can be ignored.
Before towing, the receiver size must match the hitch shank, the hitch ball must match the trailer coupler, and every component must have an appropriate weight rating.
A higher-capacity adjustable hitch does not increase the towing capacity of the vehicle.
For example, GETEEN's current 2-inch steel dual-ball 7-inch model is listed at a maximum GTW of 10,000 lbs, while the current 2.5-inch steel dual-ball 7-inch configuration is listed at up to 18,000 lbs. Those numbers describe the hitch configurations; they do not override the vehicle, receiver, trailer, or other component limits.
Always follow the lowest applicable rating in the complete towing setup.
What If I Tow More Than One Trailer?
Measure every trailer.
Do not assume two trailers with similar overall size will have the same coupler height.
A boat trailer, utility trailer, camper, and equipment trailer can all sit differently.
Suppose one trailer needs approximately 3 inches of drop and another needs about 6 inches.
A properly sized adjustable hitch can cover both positions without requiring two separate fixed ball mounts.
Ball size may also vary between trailers.
If both trailers use 2-inch and 2-5/16-inch couplers, a dual-ball design may be enough.
If you regularly encounter 1-7/8-inch couplers as well, a tri-ball setup can add another option.
Again, choose based on the trailers you actually tow rather than the maximum number of features available.
Does the Trailer Need to Be Perfectly Level?
The goal is to get the trailer as close to its intended level towing position as practical.
Adjustable hitches use fixed adjustment positions, so the exact measurement you calculate may not always correspond perfectly to one available hole position.
If your measurement falls between adjustment positions, follow the hitch and trailer manufacturer's setup guidance and choose the appropriate supported position.
Do not modify the hitch or create an unsupported mounting position just to reach an exact measurement.
Common Hitch Height Mistakes
One of the most common mistakes is choosing drop based on how tall the truck looks.
Another is measuring the trailer while it is sitting nose-up or nose-down.
Drivers also sometimes measure from different reference points on the receiver and coupler, which can produce the wrong number.
And a 7-inch adjustable hitch should not automatically be chosen instead of a 5-inch model just because it offers more adjustment.
The cleanest process is:
Measure first. Choose second.
A Simple Way to Choose Your GETEEN Setup
Start with the receiver already installed on your truck.
A 2-inch receiver needs a compatible 2-inch hitch shank.
A 2.5-inch receiver needs the appropriate 2.5-inch configuration unless your vehicle and equipment manufacturer specifically allows another setup.
Then measure the required drop or rise.
After that, check the trailer's loaded weight and coupler ball size.
Only then should you decide between 5-inch or 7-inch adjustment, dual-ball or tri-ball, and steel or aluminum.
GETEEN's current range follows this same basic structure: products are organized by receiver size, material, and ball configuration rather than treating one hitch as the answer for every towing setup.
Final Check Before You Tow
Before connecting the trailer, confirm the receiver size, ball size, height adjustment, hitch pins and locks, trailer weight, tongue weight limits, safety chains, wiring, and manufacturer-rated towing capacities.
After coupling, step back and look at the complete truck-and-trailer combination.
The trailer should not obviously sit with the tongue excessively high or low.
If the setup does not look right, recheck the measurements rather than assuming the hitch position is correct.
The best adjustable hitch setup is not the one with the biggest drop or the highest capacity.
It is the one that correctly matches the truck and trailer you are actually towing.
Measure the setup. Match the height. Then hit the road.
FAQ
How do I know how much drop my trailer hitch needs?
Measure from the ground to the top inside edge of the receiver opening, then measure from the ground to the bottom of the level trailer coupler. If the receiver is higher, the difference is approximately the drop required.
What if my trailer coupler is higher than my receiver?
You may need a rise instead of a drop. Only use a ball mount in the rise position if that configuration is approved by the manufacturer.
Is a 7-inch drop better than a 5-inch drop?
Not automatically. The correct adjustment range depends on the measured difference between your receiver and trailer coupler heights.
Can I use the same adjustable hitch for different trailers?
Potentially, yes, if the hitch's receiver size, height adjustment range, ball size options, and weight ratings properly match each trailer and tow vehicle.
Does an 18,000-lb hitch mean my truck can tow 18,000 lbs?
No. A ball mount's rating does not increase the towing capacity specified for your vehicle. The complete towing system remains limited by its lowest-rated applicable component.
